  • Rubber and Barrel Vacuum Lifter
  • Rubber and Barrel Vacuum Lifter

    Vacuum lifters are used in industries such as food, pharmaceuticals, chemicals, and logistics for tasks like palletizing, material feeding.  It features a suspension function, and the lifting, lowering, suction, and release of workpieces are controlled by a single valve lever.

    ◆ Suitable for handling cardboard boxes, bags, barrels, rubber blocks, etc
    ◆ Equipped with a vacuum pressure gauge, with a maximum load of 300KG
    ◆ Suitable for assembly line palletizing and bag feeding
    ◆ Transportation speed of 1 meter/second, with built-in suspension function
    ◆ The lifting/lowering, suction and release of the workpiece are controlled by the same valve stem
    ◆ SS304 stainless steel control unit, meeting food grade requirements
    ◆ Efficient, safe, fast, and labor-saving
    ◆ The company has passed ISO9001 and its products have passed CE certification
    • 0.00
      0.00
Product Description

Vacuum lifters are used in industries such as food, pharmaceuticals, chemicals, and logistics for tasks like palletizing, material feeding.  It features a suspension function, and the lifting, lowering, suction, and release of workpieces are controlled by a single valve lever.

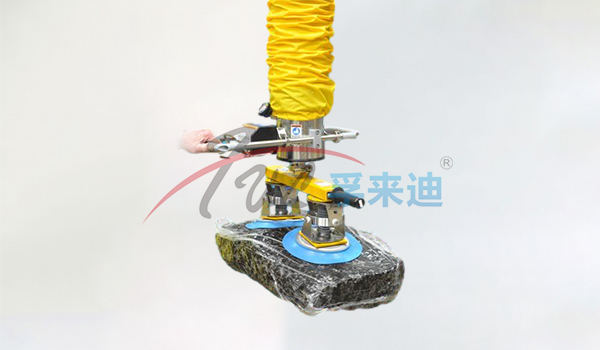

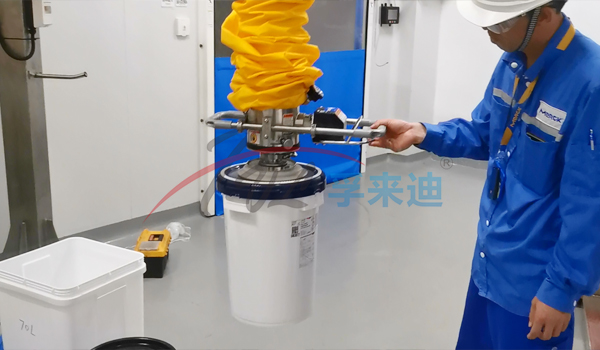

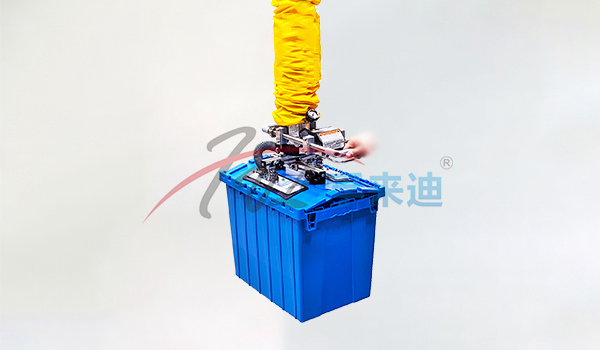

◆ Suitable for handling cardboard boxes, bags, barrels, rubber blocks, etc

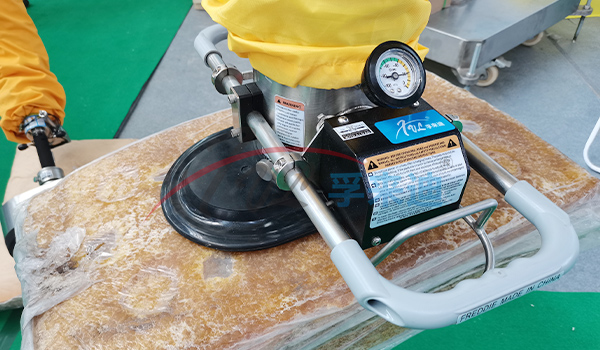

◆ Equipped with a vacuum pressure gauge, with a maximum load of 300KG
◆ Suitable for assembly line palletizing and bag feeding
◆ Transportation speed of 1 meter/second, with built-in suspension function
◆ The lifting/lowering, suction and release of the workpiece are controlled by the same valve stem
◆ SS304 stainless steel control unit, meeting food grade requirements
◆ Efficient, safe, fast, and labor-saving
◆ The company has passed ISO9001 and its products have passed CE certification

PRODUCT DETAILS


Vacuum Lift Tube
Assembly Set Number
DimensionsLoad
Lift
CM
Extended Height
CM
Compressed Height
CM
Non-porous Loads
KG
Semi-porous Loads
KG
Porous Loads
KG
FVL-VT80 167 280 112 23 16 14
FVL-VT100 167 275 108 43 32 23
FVL-VT120 167 277 110 64 48 32
FVL-VT140 167 277 110 84 64 43
FVL-VT160 167 282 115 102 77 52
FVL-VT180 167 287 120 129 98 66
FVL-VT200 167 287 120 161 120 80
FVL-VT230 167 287 140 214 160 107
FVL-VT250 167 292 124 230 175 125
FVL-VT300 167 292 124 250 195 140
